各種軟管流量范圍對照表
《各種軟管范圍流量對照表》
（以下參數根據雷弗蠕動泵抽取23°C純水時測量所得，僅供參考）

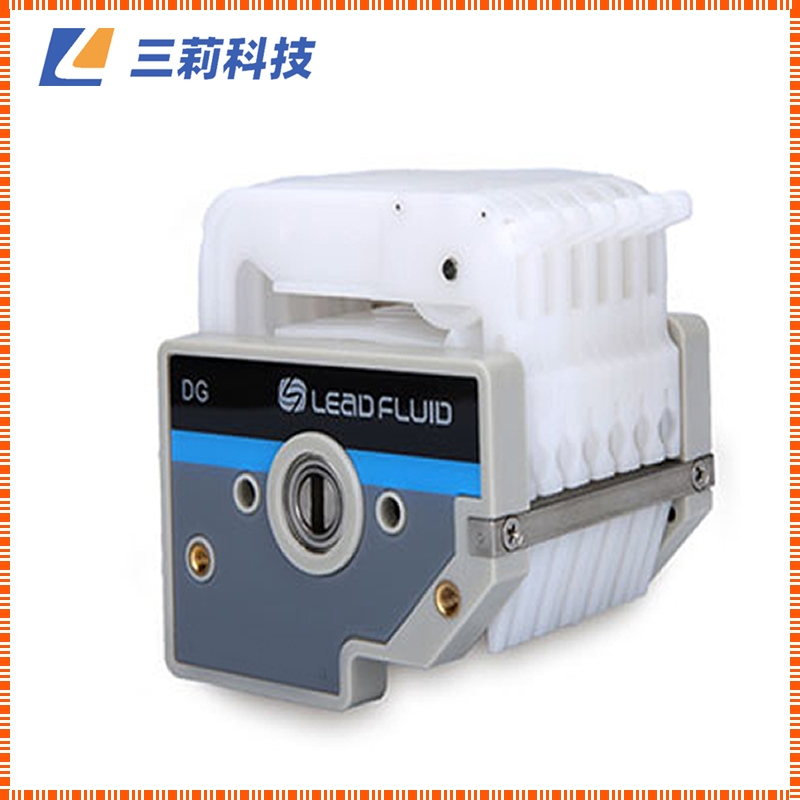

DG6-1 | ||||||
管號 轉速 | 0.13 | 0.25 | 0.5 | 0.76 | 1 | 1.22 |
0.1 | 0.16ul/min | 0.5ul/min | 2.2ul/min | 4.8ul/min | 5.8ul/min | 10.8ul/min |
1 | 1.6ul/min | 5ul/min | 22ul/min | 48ul/min | 58ul/min | 108ul/min |
100 | 160ul/min | 500ul/min | 2.2ml/min | 4.8ml/min | 5.8ml/min | 10.8ml/min |
DG6-1 | ||||||
管號 轉速 | 1.52 | 1.65 | 2.1 | 2.4 | 2.79 | 3.17 |
0.1 | 17ul/min | 18ul/min | 21ul/min | 26ul/min | 35ul/min | 49ul/min |
1 | 170ul/min | 180ul/min | 210ul/min | 260ul/in | 350ul/min | 490ul/min |
100 | 17ml/min | 18ml/min | 21ml/min | 26ml/min | 35ml/min | 49ml/min |
YZ-15 | |||||||
管號轉速 | 13# | 14# | 19# | 16# | 25# | 17# | 18# |
0.1 | 6ul/min | 21ul/min | 47ul/min | 80ul/min | 166ul/min | 283ul/min | 383ul/min |
1 | 60ul/min | 210ul/min | 470ul/min | 800ul/min | 1.66ml/min | 2.83ml/min | 3.83ml/min |
150 | 9ml/min | 32.5ml/min | 70ml/min | 120ml/min | 250ml/min | 425ml/min | 575ml/min |
350 | 21ml/min | 75ml/min | 163ml/min | 280ml/min | 580ml/min | 990ml/min | 1340ml/min |
600 | 36ml/min | 130ml/min | 280ml/min | 480ml/min | 1000ml/min | 1700ml/min | 2300ml/min |

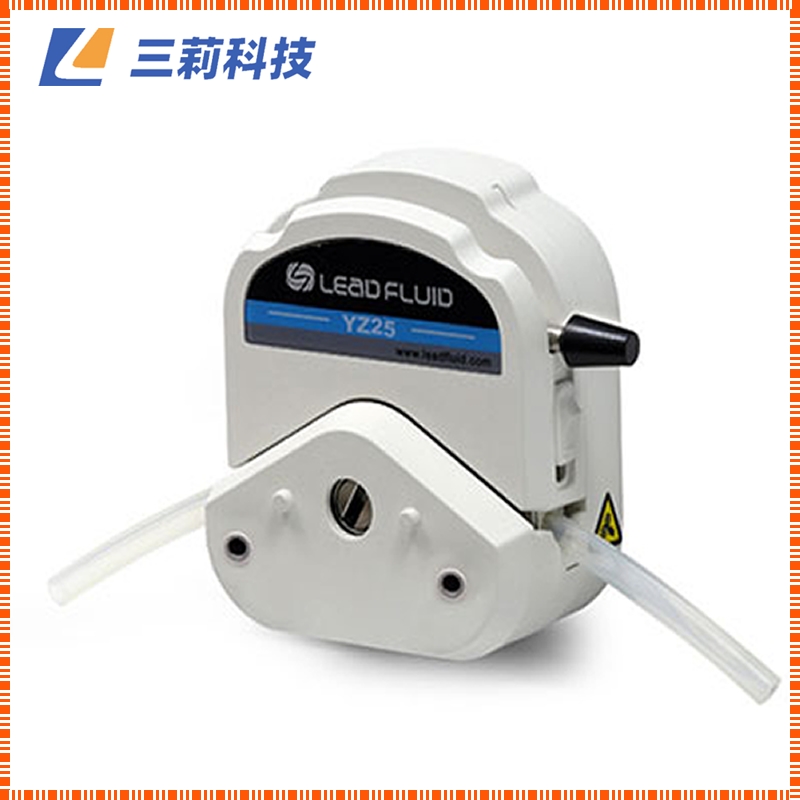

YZ-25 | ||
管號 轉速 | 15# | 24# |
0.1 | 160ul/min | 280ul/min |
1 | 1.6ml/min | 2.8ml/min |
150 | 250ml/min | 425ml/min |
350 | 580ml/min | 990ml/min |
600 | 1000ml/min | 1700ml/min |

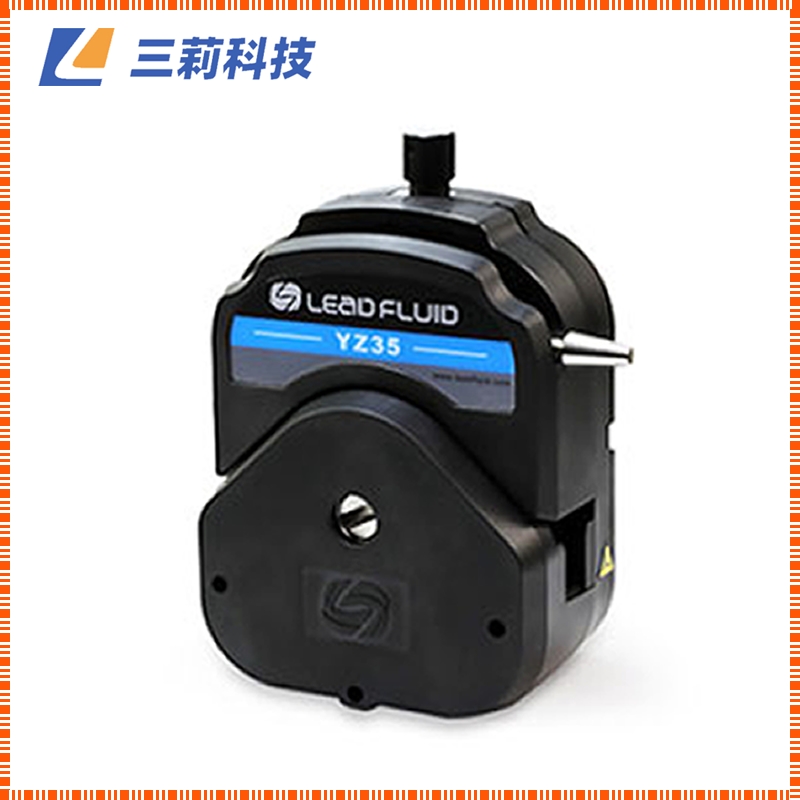

YZ-35 | ||
管號 轉速 | 73# | 82# |
60 | 800ml/min | 1300ml/min |
600 | 8L/min | 13L/min |
